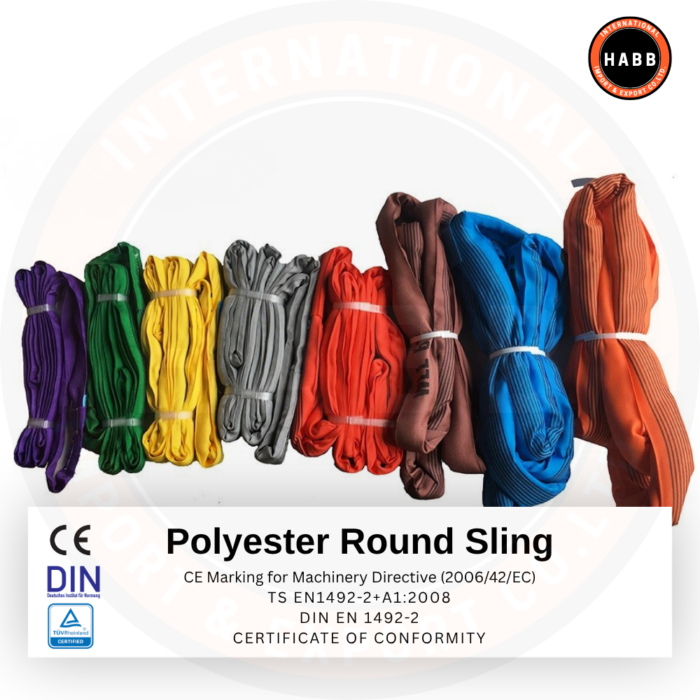

The Polyester Endless Round Sling is a textile lifting sling designed for professional load handling operations. It is manufactured from 100% high-tenacity polyester (PES) with a protective sleeve and supplied in a continuous loop configuration.

Manufactured in accordance with EN 1492-2 with a Safety Factor 7:1, this sling is supplied with documented conformity and certification references including Certificate of Conformity, CE certification, TÜV Rheinland certification, and ISO 9001 quality management documentation for the applicable product scope. Final sling selection must always be based on the load weight, lifting method, angle of use, connection arrangement, working environment, and the information shown on the sling label.

Product Introduction

Endless round slings are textile lifting accessories used for lifting, positioning, and handling loads in industrial environments. The continuous loop design allows the contact area to be changed between uses, which may help distribute wear more evenly when the sling is correctly selected, inspected, and used.

The protective sleeve helps protect the internal load-bearing yarns from normal external wear. It does not eliminate all risks of damage. Additional edge or wear protection must be used where the sling may contact sharp edges, rough surfaces, heat sources, abrasive load points, or other damaging conditions.

Technical Specifications

Length Definition

EWL means Effective Working Length. For an endless round sling, the total circumference is calculated as:

Circumference = 2 × EWL

Example: If the selected sling has an EWL of 3 m (9,84 ft), the approximate sling circumference is 6 m (19,69 ft).

Color Coding & Capacity Identification

Capacity identification is supported by sling color, black stripe marking where applicable, and product label information. The sling label remains the primary source for confirming WLL, length, manufacturer data, and traceability. Black stripe marking supports capacity identification up to 10,000 kg (22.046 lbs) where applicable.

Typical Hitch Guidance

The following information is provided as general guidance for typical lifting configurations. Actual usable capacity depends on the sling label, technical data sheet, lifting method, load geometry, angle reference, connection arrangement, and site procedure.

Always confirm the applicable Working Load Limit from the sling label and manufacturer’s load chart before use. The visual WLL chart below must be used together with the product documentation and site lifting plan.

Round Sling Working Load Limits Chart

The chart below provides a visual reference for typical round sling working load limits by lifting configuration. Always confirm the final allowable load from the sling label, technical data sheet, lifting plan, and site procedure before use.

Key Features

Typical Applications

• Industrial manufacturing and machinery handling
• Construction and structural component lifting
• Logistics, warehousing, and cargo handling
• Marine, port, and general dockside lifting operations
• Energy, infrastructure, and installation support
• Maintenance, repair, and controlled load positioning

Inspection, Storage & Handling

• Inspect the sling before each use in accordance with the manufacturer’s instructions and applicable site procedure.
• Remove from service if the label is missing, damaged, or illegible.
• Remove from service if cuts, abrasion, exposed yarns, sleeve damage, deformation, heat damage, or chemical attack are observed.
• Do not use the sling over sharp or abrasive edges without suitable edge or wear protection.
• Polyester is not suitable for all chemical environments. Chemical compatibility must be assessed before use.
• Store the sling in a clean, dry location away from unnecessary UV exposure, heat sources, sharp objects, and chemical contamination.

Documentation & Compliance

• EN 1492-2: Manufactured in accordance with the product standard for textile round slings.
• Certificate of Conformity: Certificate of Conformity documentation is available for the applicable product scope.
• CE certification: CE marking and associated documentation are available where applicable under the relevant EU directives.
• TÜV Rheinland certification: Certification reference is available for the verified product and certification scope.
• ISO 9001: Quality management system documentation is available.

Industrial Safety Instruction

The following visual guide provides general industrial safety information for sling handling and lifting operations. It must be used together with the sling label, technical documentation, lifting plan, manufacturer’s instructions, and applicable site safety procedures.

Safety Notice

Lifting operations involve serious risk. The sling must be selected, inspected, and used only by competent personnel familiar with lifting operations, sling selection, inspection requirements, and site safety procedures.

Never exceed the Working Load Limit shown on the sling label. The Safety Factor 7:1 must not be interpreted as permission to overload the product.

Final use must always be verified against the product label, technical data sheet, lifting plan, connection arrangement, load geometry, environmental conditions, manufacturer’s instructions, and applicable site procedures.
