Duplex Webbing Sling 1.000 kg to 30.000 kg
Price range: €122,00 through €3.900,00

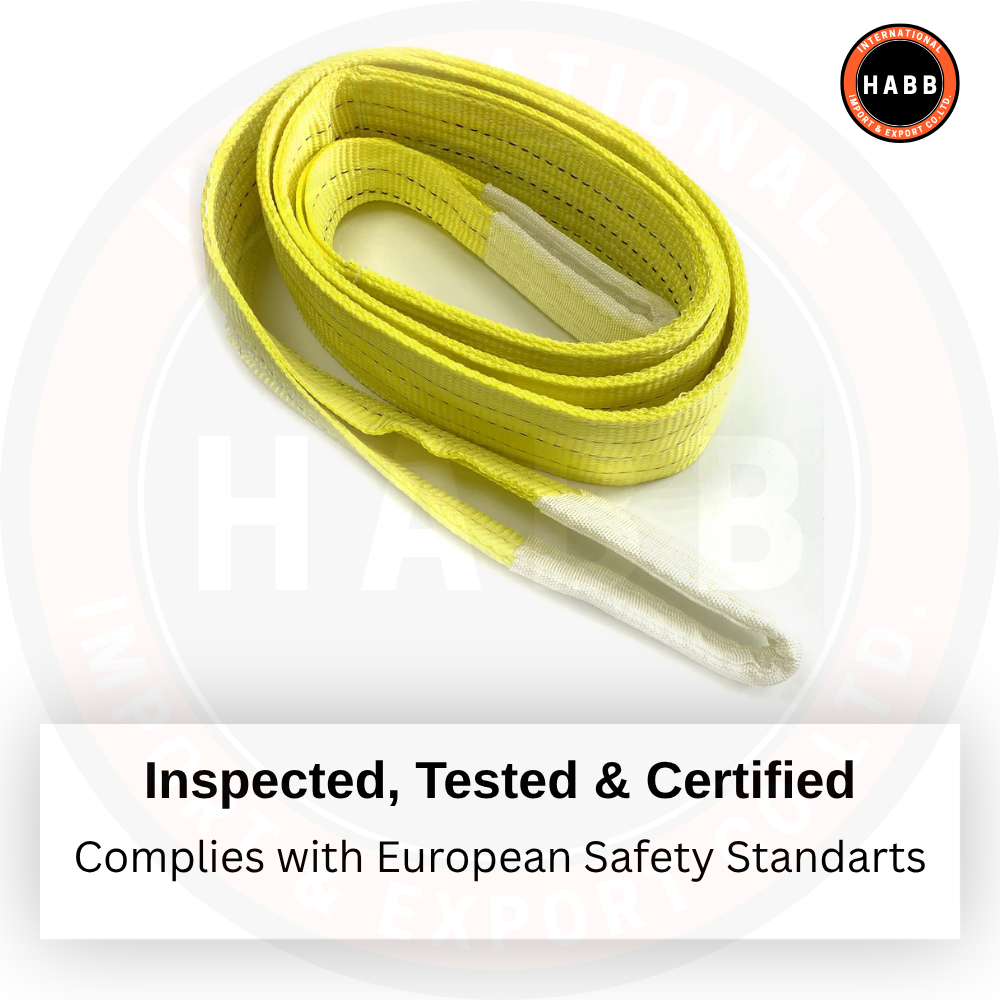

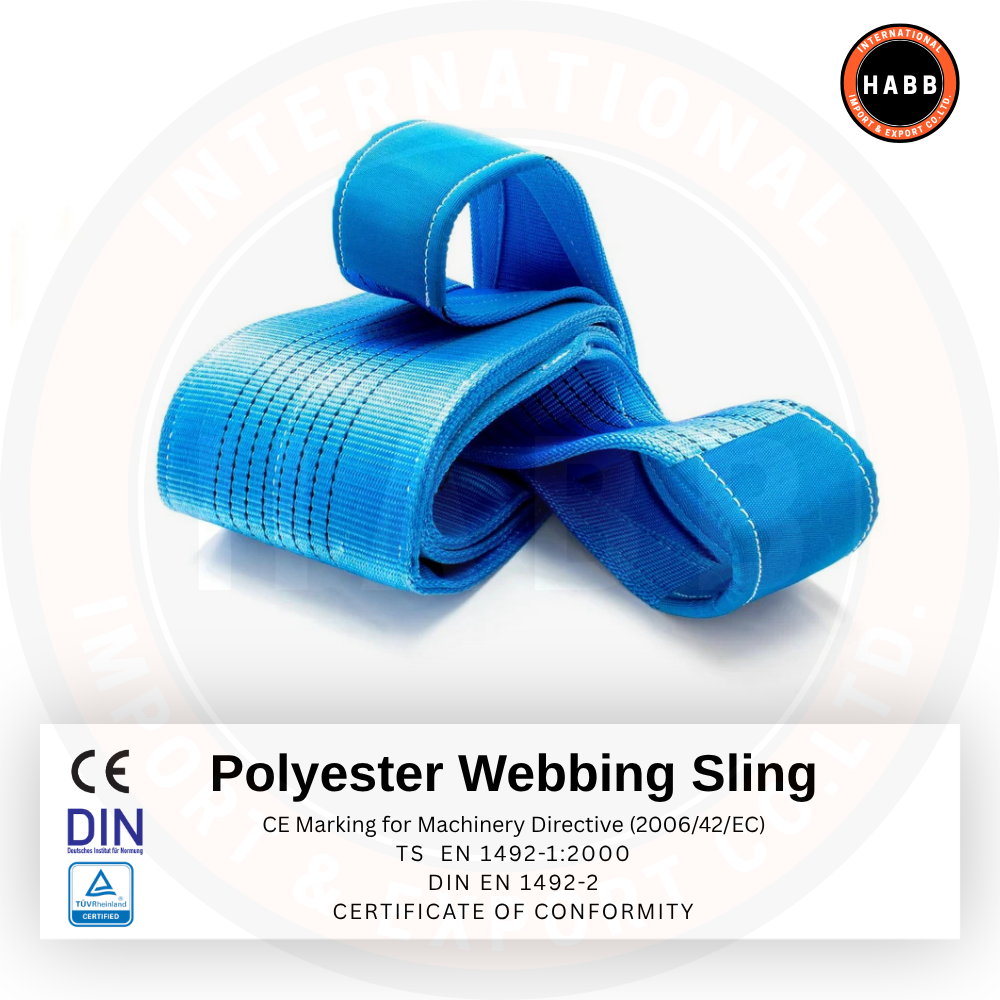

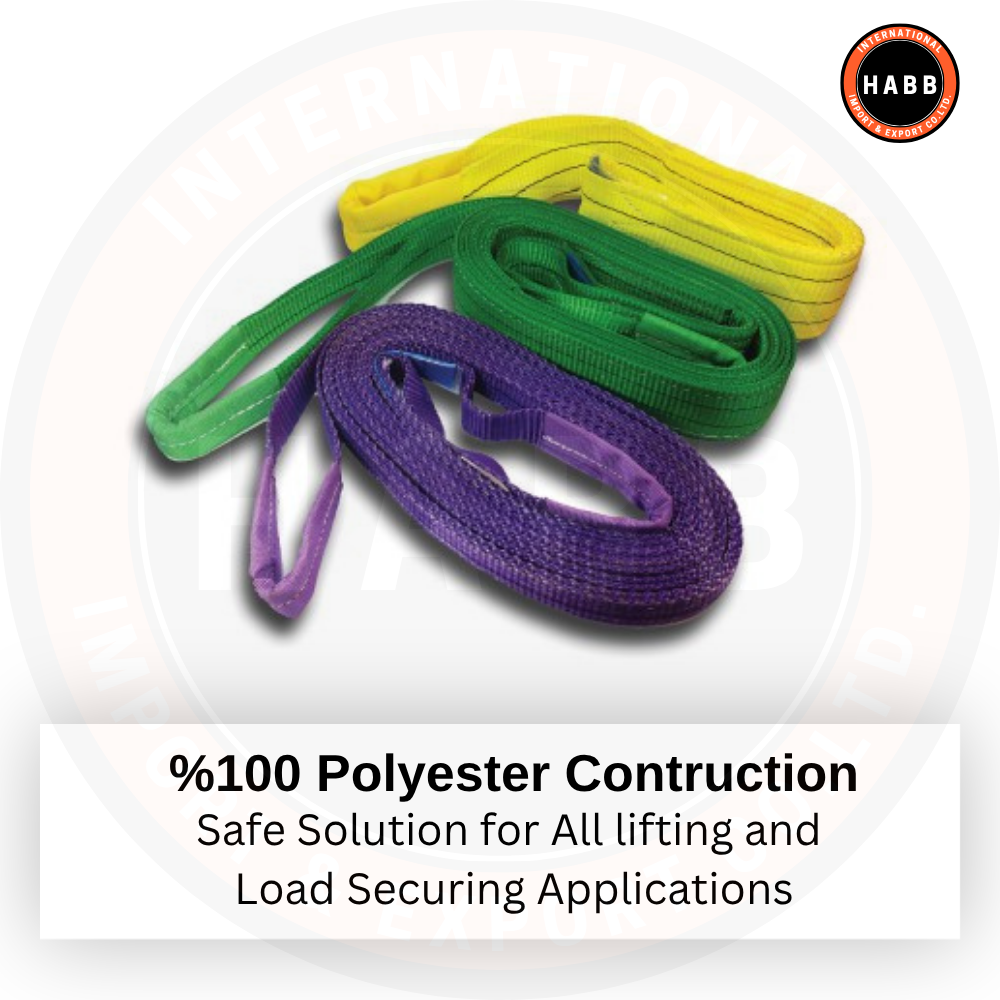

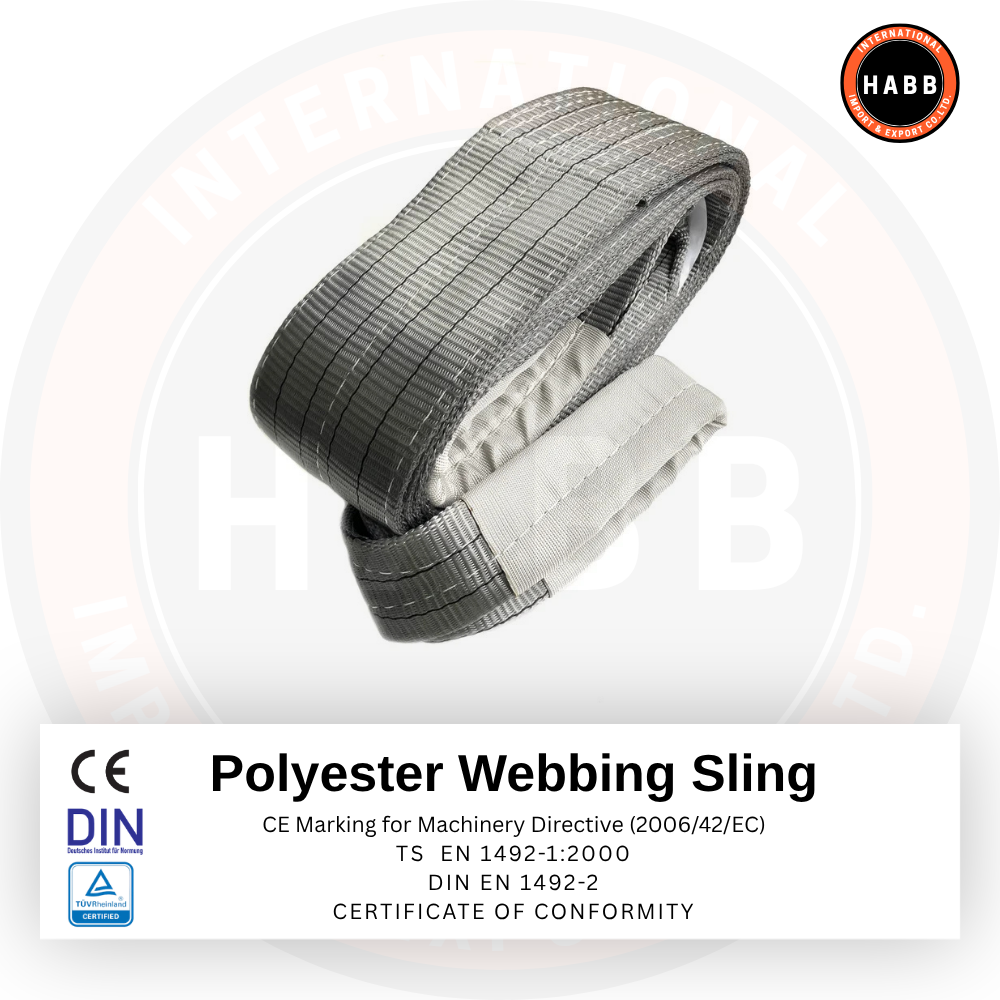

Duplex / Multi-Ply Webbing Sling – WLL 1.000 kg to 30.000 kg | EWL 1 m to 20 m
Professional multi-ply webbing sling manufactured from 100% high-tenacity polyester in Türkiye. Fully compliant with EN 1492-1:2000 standard with 7:1 safety factor. Duplex/multi-ply construction offers superior strength-to-weight ratio and exceptional abrasion resistance for heavy-duty lifting operations.
Range: WLL 1.000 kg – 30.000 kg
Effective Working Length (EWL): 1 m – 20 m
Standard: EN 1492-1:2000 | CE | TÜV GS | ISO 9001

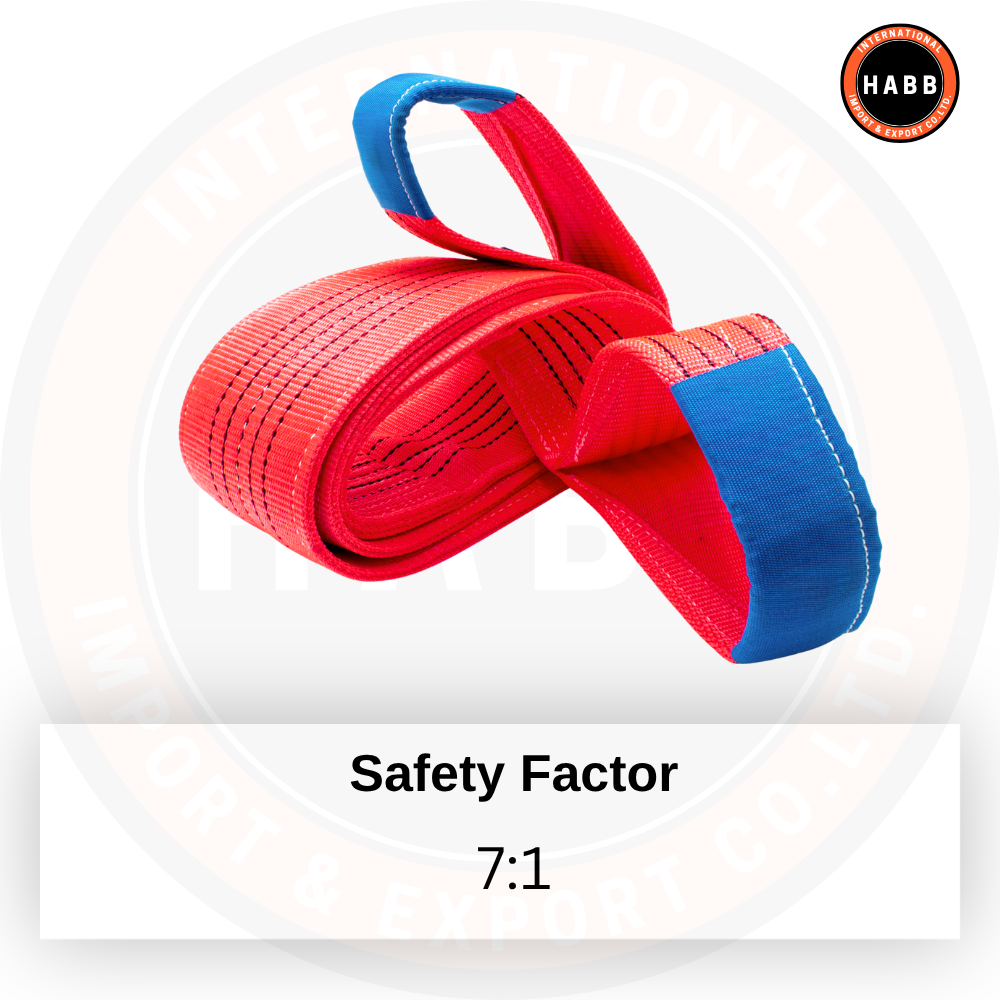

Safety Factor: 7:1
Origin: Made in Türkiye

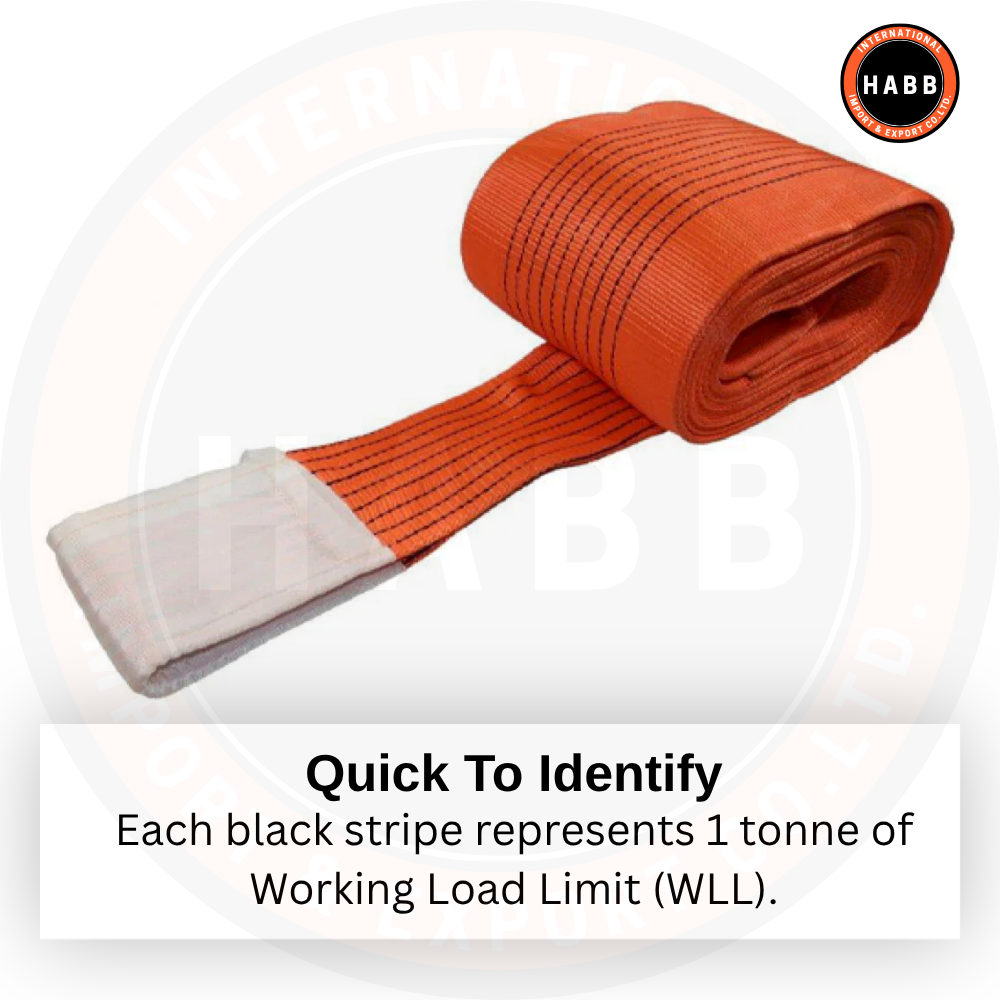

Key Feature: Multi-layer (duplex/triplex/quadruplex) construction provides exceptional strength and abrasion resistance. Black stripes woven into webbing indicate capacity. Blue permanent label with full traceability.
The most versatile and cost-effective solution for all heavy-duty lifting & rigging applications.
Duplex / Multi-Ply Webbing Sling – WLL 1.000 kg to 30.000 kg | EWL 1 m to 20 m
Our duplex and multi-ply webbing slings represent the pinnacle of flat sling engineering. Manufactured from 100% high-tenacity polyester in ISO 9001 certified facilities in Türkiye, these slings feature multiple layers of webbing stitched together to achieve exceptional strength-to-weight ratios and superior abrasion resistance.
Technical Specifications
| Material | 100% High-Tenacity Polyester (PES) – Multi-Ply Construction |
| Working Load Limit (WLL) | 1.000 kg – 30.000 kg |
| Effective Working Length (EWL) | 1 m – 20 m |
| Safety Factor | 7:1 |
| Standard | EN 1492-1:2000 | CE | TÜV GS |
| Temperature Range | -40°C to +100°C |
| Origin | Made in Türkiye – ISO 9001 Certified Facility |

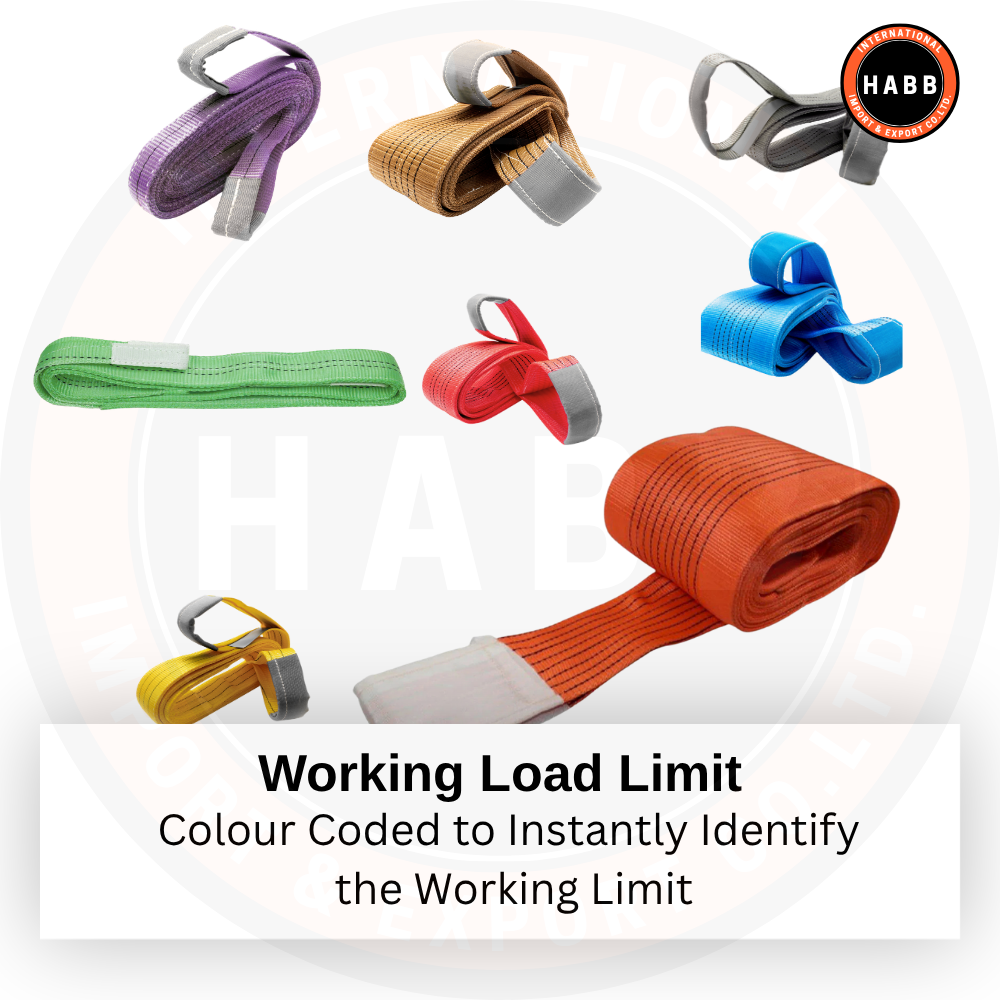

Color Coding & Capacity Identification (EN 1492-1)
| WLL (kg) | Color | Black Stripes | Construction |
|---|---|---|---|
| 1.000 | Purple | 1 stripe | Single / Duplex |
| 2.000 | Green | 2 stripes | Duplex |
| 3.000 | Yellow | 3 stripes | Duplex |
| 4.000 | Grey | 4 stripes | Triplex |
| 5.000 | Red | 5 stripes | Triplex |
| 6.000 | Brown | 6 stripes | Triplex / Quadruplex |
| 8.000 | Blue | 8 stripes | Quadruplex |
| 10.000 | Orange | 10 stripes | Multi-Ply (custom) |
Load Capacity by Hitch Configuration
| Hitch Type | Capacity Factor |
|---|---|
| Vertical (Straight) Lift | 1.0 × WLL |
| Choker (Loop) Lift | 0.8 × WLL |
| Basket Lift (0° – 45°) | 1.4 × WLL |
| Basket Lift (45° – 60°) | 1.0 × WLL |
Key Features
- Multi-Ply Construction: Duplex (2-ply), triplex (3-ply), and quadruplex (4-ply) options for optimal strength-to-weight ratio
- Superior Abrasion Resistance: Multiple layers provide enhanced protection against wear
- Full Traceability: Permanent blue label with manufacturer ID, serial number, batch number
- Low Stretch: <3% elongation at WLL
- Excellent Load Distribution: Wide flat bearing surface protects delicate loads
Certifications & Documentation
- CE Mark (Machinery Directive 2006/42/EC)
- TÜV GS Certified
- ISO 9001:2015 Manufacturing Facility
- Declaration of Conformity (DoC) available per batch
- Test reports upon request
⚠️ Safety & Legal Warning
Improper use of lifting slings may result in property damage, severe injury, or death. Only trained and qualified personnel should use this equipment. Inspect for cuts, abrasion, UV damage, and label legibility before each use. Periodic inspection per EN 1492-1 must be conducted by a competent person. Never exceed the Working Load Limit (WLL).
