Endless Round Sling – WLL 1000 kg to 30000 kg | EWL 1 m to 20 m
Price range: €111,00 through €4.789,00
Endless Round Sling – WLL 1.000 kg to 30.000 kg | EWL 1 m to 20 m

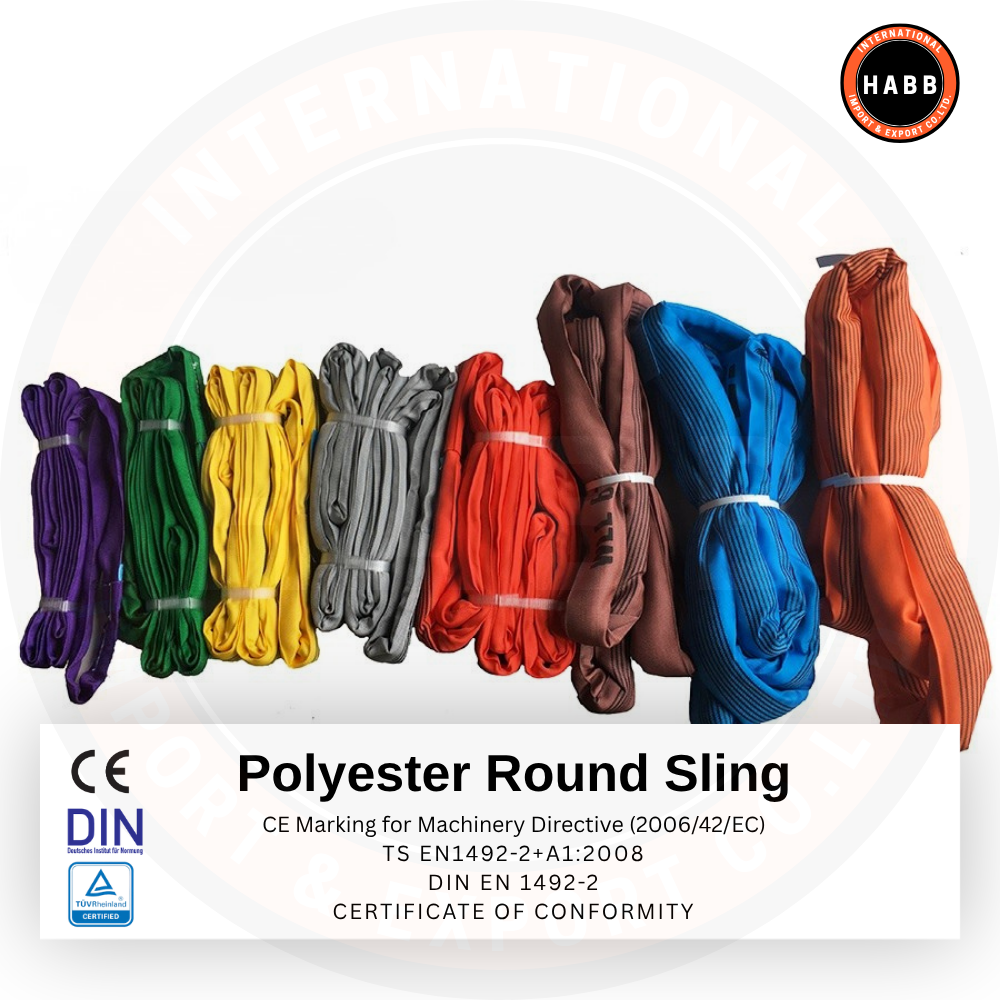

Professional endless round sling manufactured from 100% high-tenacity polyester in Türkiye. Fully compliant with EN 1492-2:2000 standard with 7:1 safety factor. The seamless endless loop design allows 360° rotation for even wear distribution, significantly extending service life while providing exceptional load protection.
Range: WLL 1.000 kg – 30.000 kg
Effective Working Length (EWL): 1 m – 20 m
Circumference: 2 m – 40 m (2 × EWL)
Standard: EN 1492-2:2000 | CE | TÜV GS | ISO 9001

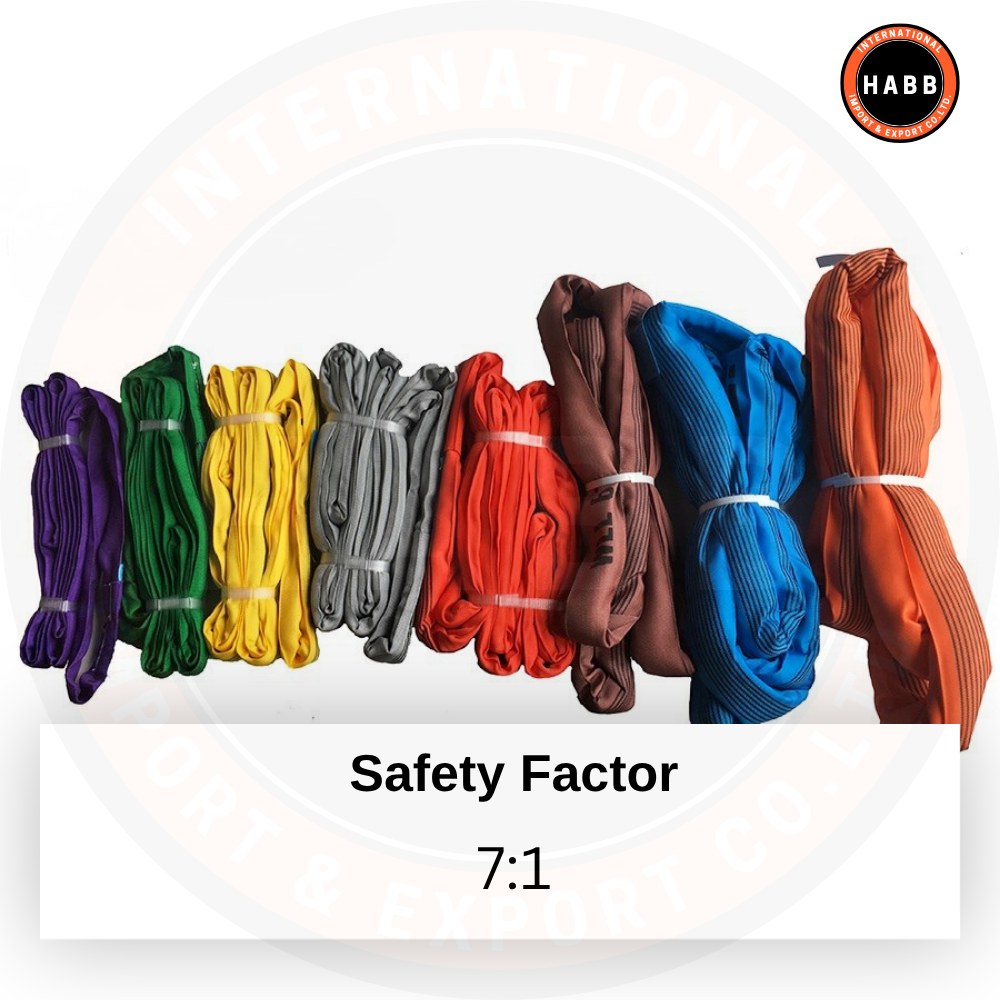

Safety Factor: 7:1
Origin: Made in Türkiye

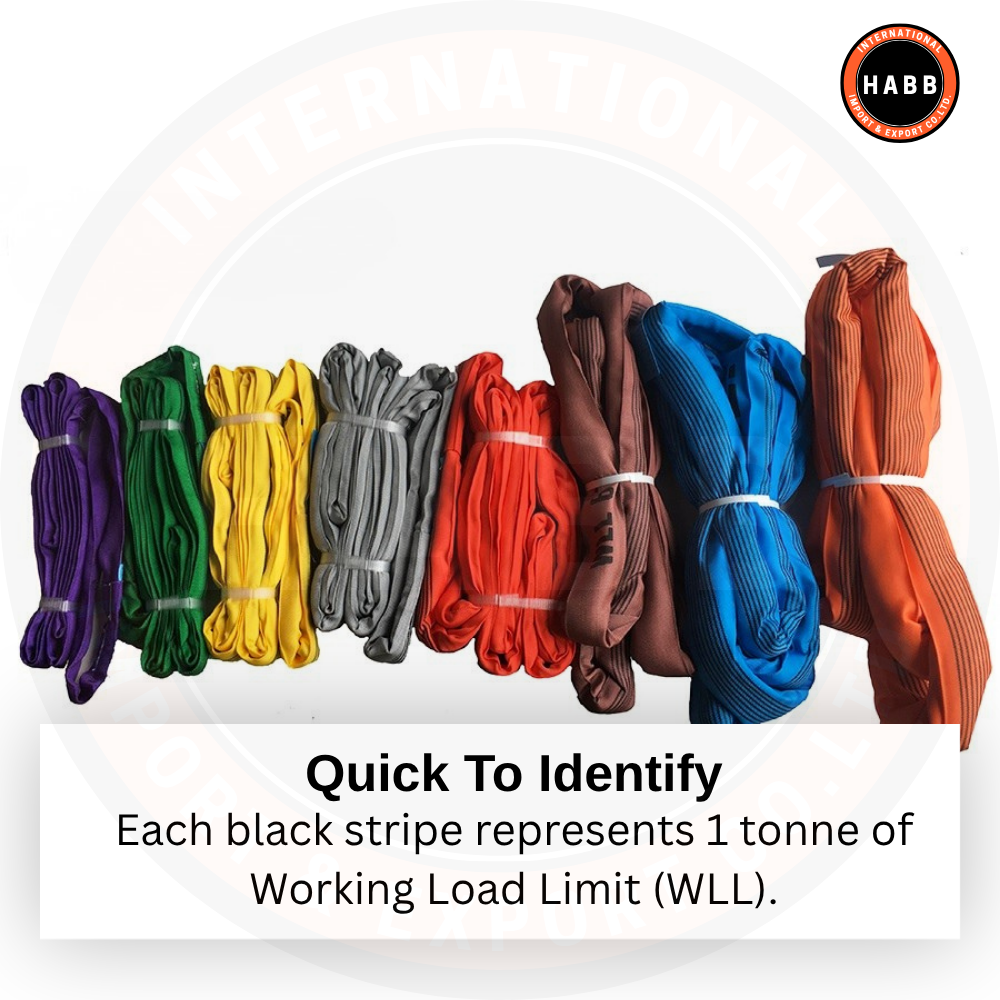

Key Feature: Seamless endless loop with protective sleeve. Black stripes on sleeve indicate capacity (each stripe = 1.000 kg). Blue permanent label with full traceability.
The preferred choice for demanding lifting operations requiring maximum flexibility, load protection, and even wear distribution.
Endless Round Sling – WLL 1.000 kg to 30.000 kg | EWL 1 m to 20 m
Our endless round slings represent the highest standard in textile lifting technology. Manufactured from 100% high-tenacity polyester in ISO 9001 certified facilities in Türkiye, these slings combine exceptional strength with superior load protection. The seamless endless design allows the sling to rotate freely around the load, ensuring even wear distribution and significantly extended operational life.
Technical Specifications

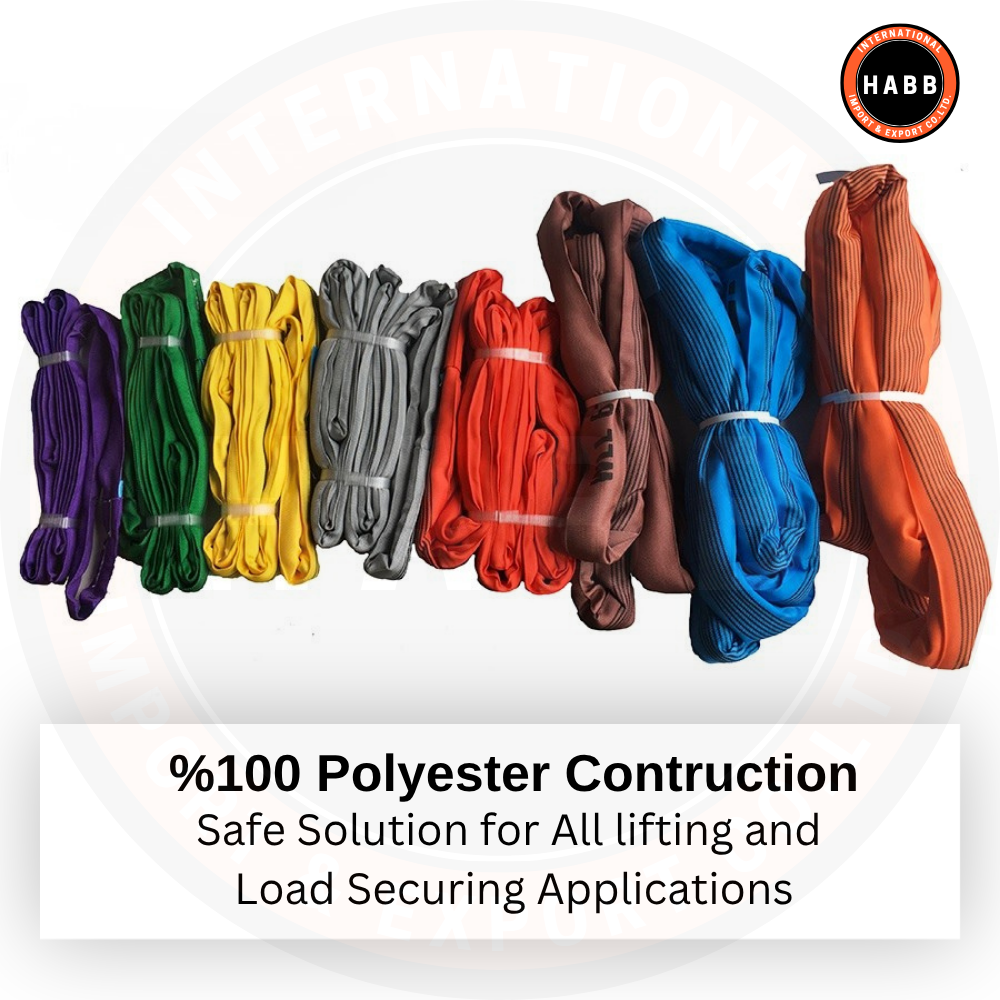

| Material | 100% High-Tenacity Polyester (PES) with Protective Sleeve |
| Working Load Limit (WLL) | 1.000 kg – 30.000 kg |
| Effective Working Length (EWL) | 1 m – 20 m |
| Circumference | 2 m – 40 m (2 × EWL) |
| Safety Factor | 7:1 |
| Standard | EN 1492-2:2000 | CE | TÜV GS |
| Temperature Range | -40°C to +100°C |
| Elongation at WLL | 2-3% |
| Origin | Made in Türkiye – ISO 9001 Certified Facility |

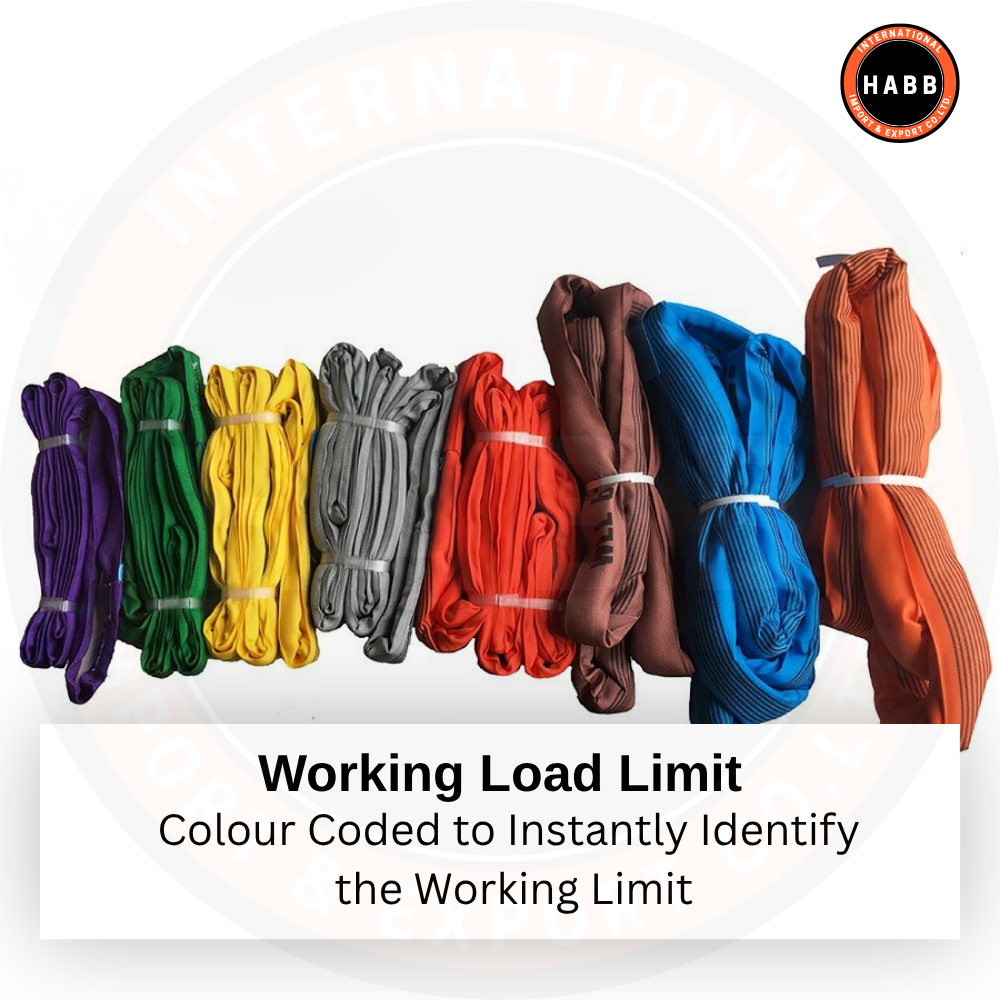

Color Coding & Capacity Identification (EN 1492-2)
| WLL (kg) | Color | Black Stripes (on Sleeve) |
|---|---|---|
| 1.000 | Purple (Violet) | 1 stripe |
| 2.000 | Green | 2 stripes |
| 3.000 | Yellow | 3 stripes |
| 4.000 | Grey | 4 stripes |
| 5.000 | Red | 5 stripes |
| 6.000 | Brown | 6 stripes |
| 8.000 | Blue | 8 stripes |
| 10.000 | Orange | 10 stripes |
Note: For capacities above 10.000 kg, the industry standard remains Orange, with black stripes indicating specific capacity. Each black stripe equals 1.000 kg.
Load Capacity by Hitch Configuration
| Hitch Type | Capacity Factor | Example at 3.000 kg WLL |
|---|---|---|
| Vertical (Straight) Lift | 1.0 × WLL | 3.000 kg |
| Choker (Loop) Lift | 0.8 × WLL | 2.400 kg |
| Basket Lift (0° – 45°) | 1.4 × WLL | 4.200 kg |
| Basket Lift (45° – 60°) | 1.0 × WLL | 3.000 kg |
Capacity factors apply to all round slings per EN 1492-2 standard.
Key Features
- Endless Loop Design: Seamless continuous construction allows 360° rotation, preventing localized wear and extending service life
- Protective Sleeve: Durable outer cover protects the load-bearing core from abrasion and UV damage
- Load Protection: Soft polyester construction prevents damage to delicate surfaces, ideal for polished, painted, or sensitive loads
- Full Traceability: Permanent blue label with manufacturer ID, serial number, batch number, and year of manufacture
- High Flexibility: Easily conforms to irregular shapes and cylindrical objects
- Non-Conductive: Safe for use near electrical hazards (no metal components)
Primary Applications
- Industrial Manufacturing: Assembly lines, machinery moving, equipment installation
- Construction: Steel erection, concrete panel lifting, heavy equipment positioning
- Marine & Port: Container handling, ship cargo, dock operations
- Logistics & Warehousing: Palletized goods, bulk materials, sensitive cargo
- Oil & Gas: Pipe lifting, equipment transport, offshore operations
- Wind Energy: Turbine component handling, blade installation

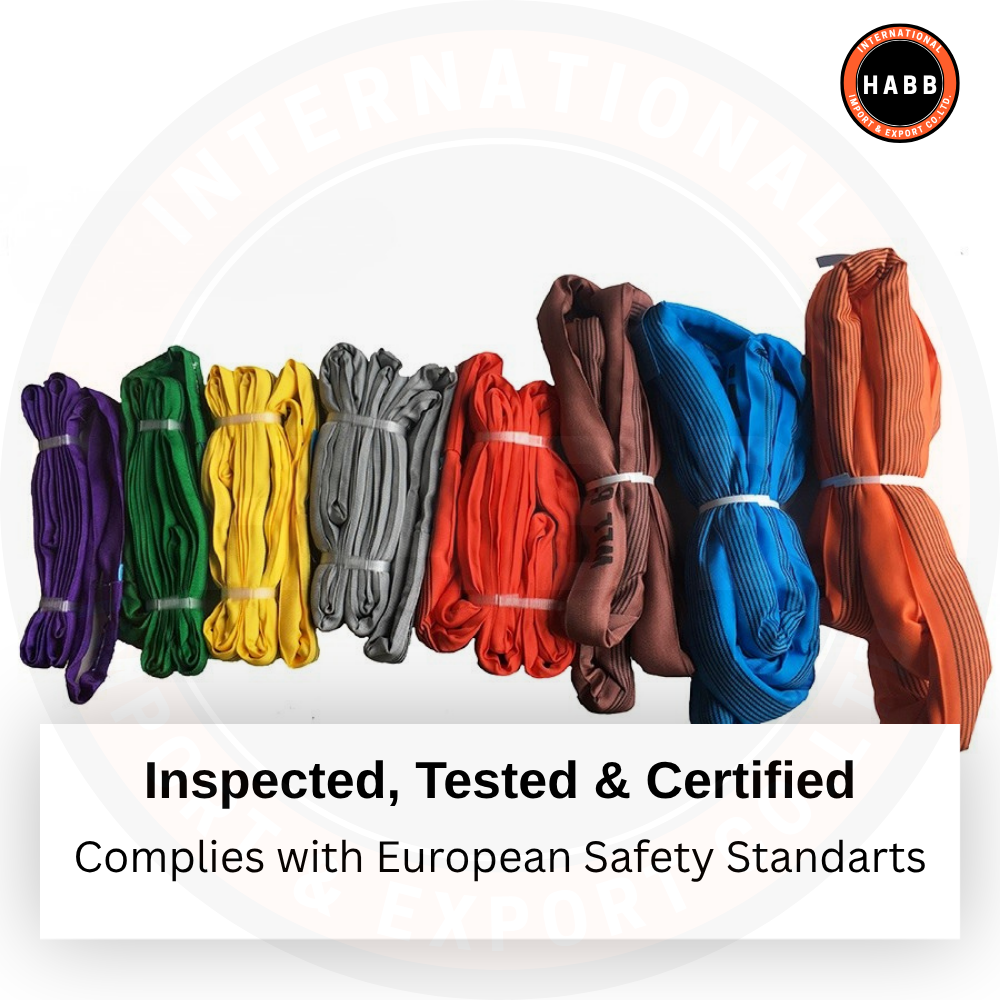

Certifications & Documentation
- CE Mark: Compliant with Machinery Directive 2006/42/EC
- TÜV GS Certified: Tested Safety certification from recognized test center
- ISO 9001:2015: Manufactured in certified facility
- Declaration of Conformity (DoC): Available per batch in English, Turkish, Russian, and other languages upon request
- Test Reports: EN 1492-2 test documentation available upon request
- Inspection Log: Recommended periodic inspection documentation included
Storage & Maintenance
- Store in dry, cool, dark conditions away from direct sunlight
- Avoid contact with acids, alkalis, and harsh chemicals
- Clean with water and mild soap; do not use solvents
- Do not store near heat sources or in freezing conditions below -40°C
- Inspect before each use; remove from service if any damage is detected
⚠️ Safety & Legal Warning
IMPORTANT SAFETY NOTICE: Improper use of lifting slings may result in property damage, severe injury, or death. This equipment must be used only by qualified and trained personnel who have completed certified rigging training.
Pre-Use Inspection Requirements: Inspect for cuts, abrasion, UV degradation, chemical damage, and label legibility before each lift. If any damage is found or the blue label is illegible, remove the sling from service immediately.
Periodic Inspection: Per EN 1492-2 requirements, a competent person must conduct formal periodic inspections. Inspection intervals depend on usage frequency and operating conditions—typically every 6-12 months.
Prohibited Uses: These slings are NOT designed for: lifting persons, molten metal, acids, glass sheets, nuclear materials, or where special hazardous conditions apply.
Never exceed the Working Load Limit (WLL). The 7:1 safety factor is a design parameter and does not permit intentional overloading.
